Only by properly using a language can individuals actually communicate and understand the meanings of the complex concepts they convey. This article examines the differences between three of modern project management's core concepts: PERT network, CPM network, and Precedence diagram. In doing so, it explains why project managers must possess the ability to clearly communicate the meaning and. Also called: activity on arrow diagram, activity network diagram, network diagram, activity chart, node diagram, CPM (critical path method) chart. Variation: PERT (program evaluation and review technique) chart. An arrow diagram is defined as a process diagramming tool used to determine optimal sequence of events, and their interconnectivity.

A PERT chart is a network diagram that allows project managers to create project schedules. They're used in the Program Evaluation Review Technique (PERT) to represent a project timeline, estimate the duration of tasks, identify task dependencies and find the critical path of a project. PERT charts are used by project managers to create. Critical path method vs. PERT; Critical path method vs. Gantt chart; Use critical path for better project management; View Templates.. The list of dependent tasks is referred to as an activity sequence, which will be used to determine the critical path. 3. Create a network diagram.

Related Posts of Pert Cpm Network Diagram :

Drawing a Critical Path Analysis Chart. Use the following steps to draw a CPA Chart: Step 1. List All Activities in the Plan. For each activity, show the earliest start date, estimated length of time it will take, and whether it is parallel or sequential. If tasks are sequential, show which stage they depend on.

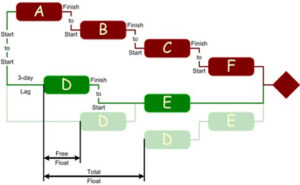

The obvious difference is that a PERT is a network diagram, while a Gantt is a bar chart. PERT charts are great in that they clearly show you when a task is dependent. That is, if one task can't start or end until another task has started or ended. Because it assists with calculating the critical path, you can also know what the early or late.

2.6 Rules for Drawing Network Diagrams 2.7 Common Errors in Drawing Networks 2.8 Advantages and Disadvantages 2.9 Critical Path in Network Analysis 2.1 Introduction to CPM / PERT Techniques CPM/PERT or Network Analysis as the technique is sometimes called, developed along two parallel streams, one industrial and the other military. CPM.

All these functionalities are contained in 4 online calculators: Critical Path Calculator - CPM Network Diagram Generator (see example).PERT Chart Calculator and Critical Path (see example).Project Completion Probability - PERT Analysis Calculator (view example).Project Crashing Calculator (see example).You will be able to access these applications and more student resources by joining our.

To use the PERT generator, click on the Data tab and choose the PERT chart icon. Choose a shape to start building your PERT chart. Click on the first shape on the canvas and you'll see the sizing tabs along with a grey arrow on each side. Click on an arrow and pick from one of the six building options.

To create a PERT chart, follow the five steps of the process lifecycle, which includes everything from identifying tasks to managing project completion. 1. Identify project tasks. The first step in creating a successful PERT chart involves identifying and collecting necessary project information and tasks.

PERT is an event-oriented technique. This means that what counts most in project planning are events like deliverables and meeting milestones. Events in PERT are basically the result of the project activities in CPM. PERT/CPM Chart. Both PERT and CPM use wireframe network diagrams for creating PERT charts and CPM charts. At a glance they do.

Managers use the network analysis of PERT and CPM to help them. A) derive flexibility by identifying noncritical activities. B) replan, reschedule, and reallocate resources such as manpower and finances. C) plan, schedule, monitor, and control large and complex projects. D) All of the above.

Applying the critical path method in unison with PERT charts can truly elevate the way you manage projects and give you a realistic deadline and process flow. Chart out your project in a PERT chart and in the last step, use the CRM to estimate times of completion to your tasks. When creating a PERT chart, you're going to give rough estimates.

This critical path analysis template provides a network diagram that includes nodes with the task name, earliest start and finish dates, latest start and finish dates, duration, and total float time. You can also use the template to display critical path DRAG, which is the amount of time that a critical path task adds to the project duration.

A) Construct a network diagram: From the network diagram Figure 8.24, the critical path is identified as 1-4, 4-6, 6-7, with a project duration of 22 days. 28. C) The probability of completing the project within 19 days is given by, P (Z< Z0) To find Z0 , Thus, the probability of completing the R & D project in 19 days is 9.01%. 29.

CPM is a step-by-step project management technique. Try to understand the critical and non-critical tasks before making the diagram. Customize the diagram. Customize yours by changing the CPM Network Diagram symbols and shapes as required. With the easy drag-and-drop feature of EdrawMax Online, you can use all the relative elements from libraries.

Compute the longest time path through the network. This is called the critical path. Use the Network to help plan, schedule, monitor and control the project. The Key Concept used by CPM/PERT is that a small set of activities, which make up the longest path through the activity network control the entire project.

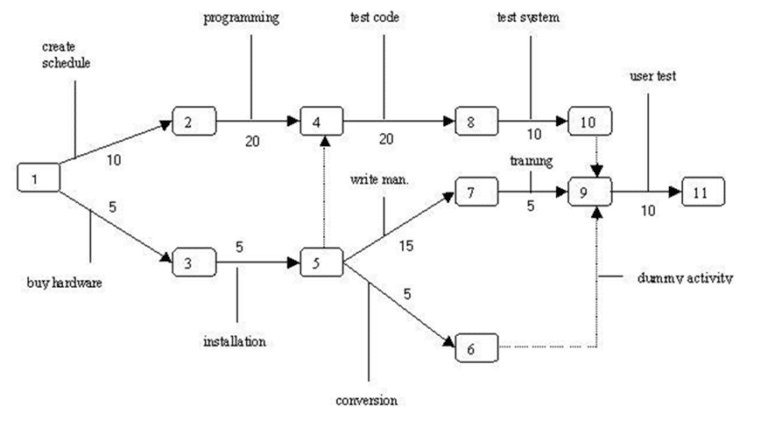

PERT Activity on Arrow Network Diagram . CPM Activity on Node Network Diagram. The second, and more important, difference is that traditional CPM applies a single duration and cost estimate for each activity, whereas traditional PERT applies a 3-point weighted average duration estimate (optimistic, most likely, and pessimistic) for each.

Critical Path Method (CPM) and Project Evaluation and Review Technique (PERT) are popular time management tools used by managers to coordinate the projects. Both are used for designing the project network and show a logical sequence of activities incomplete or in progress. CPM highlights the project duration whereas PERT is a network diagram.

Our CPM software lets project managers visualize and measure progress at a glance with automatically updated dates and task durations. Save yourself the time and hassle of updating your entire critical path diagram, also known as a project network diagram, manually. Add formulas and custom data fields to shapes that will update proceeding.

#OperationsResearch #Math #PERT #CPM #Network #CriticalPath #FreeLecture #FreeStudy #SolutionNote: Always draw as many rough drafts as you need before drawi.

PERT vs. CPM - Disadvantages: - Requires good knowledge for understanding the generated chart. - PERT is time concentrated but does not consider the cost. - In CPM, estimation of the project timeline is difficult to process. - For small projects, PERT charts can't be scaled easily.

PERT is majorly applied for scheduling, organization and integration of different tasks within a project. It provides the blueprint of project and is efficient technique for project evaluation . 2. Critical Path Method (CPM): CPM is a technique which is used for the projects where the time needed for completion of project is already known.

Here, we debate how Cpm network diagram calculator can help students learn Algebra. Get Homework Help Now Draw Network diagram. Total cost of a campaign. To find the cost of an online campaign, enter: CPM: (cost per 1,000 impressions) Number of impressions. Critical path diagram generator for PERT charts and critical paths. Use Lucidchart.

The program evaluation and review technique (PERT) is a statistical tool used in project management, which was designed to analyze and represent the tasks involved in completing a given project.. First developed by the United States Navy in 1958, it is commonly used in conjunction with the critical path method (CPM) that was introduced in 1957.

Here is a step-by-step procedure to create a PERT chart with activities in nodes: Step 1: List all the project's activities: In the first place, identify all activities and tasks necessary to complete the project. Step 2: Determine which dependencies exist: It is important to identify the interrelatedness of the activities in order to map out.

Description. This spreadsheet implements the PERT algorithm and Critical Path Method to aid in project planning and scheduling. This version lets you include up to 500 tasks (more upon request, if necessary).. Unlike a normal project schedule or gantt chart, this spreadsheet lets you use the statistical aspect of the PERT algorithm by defining the duration of a task using O-M-P times.
