This breakout board for TI's DRV8825 microstepping bipolar stepper motor driver features adjustable current limiting, over-current and over-temperature protection, and six microstep resolutions (down to 1/32-step).

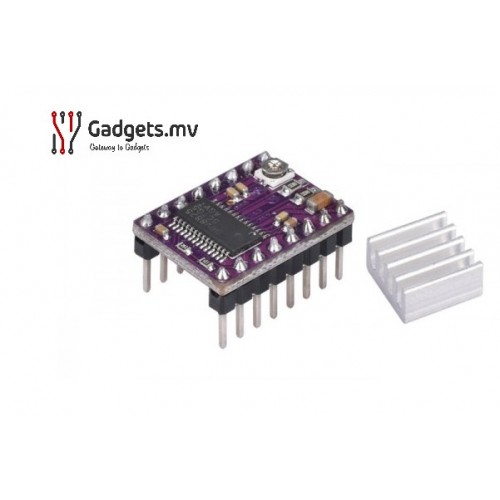

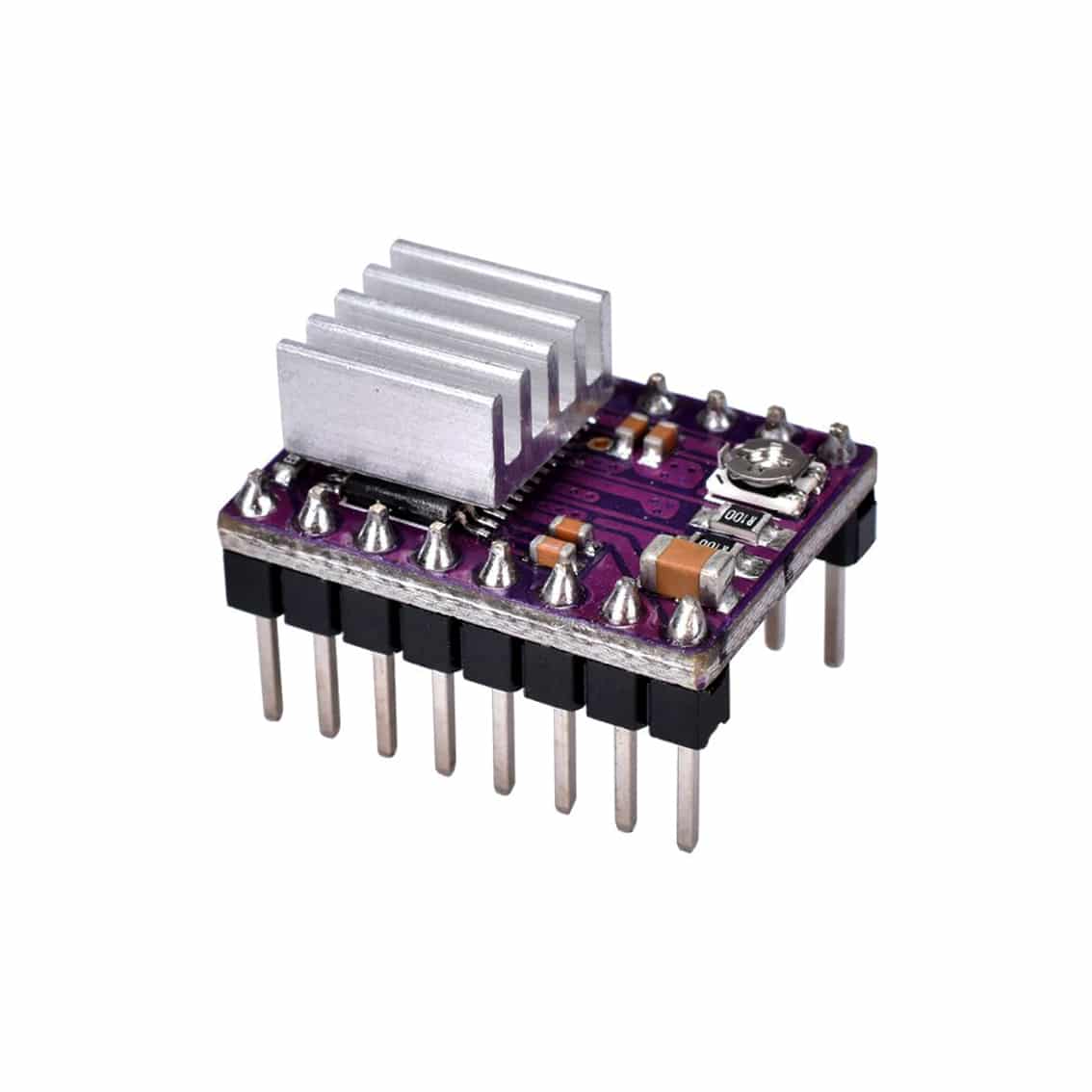

Description The DRV8825 High Current Stepper Motor Driver Module can drive one bipolar stepper motor of up to 2.2A. PACKAGE INCLUDES: DRV8825 High Current Stepper Motor Driver Module Heatsink with 3M double-stick adhesive applied. KEY FEATURES OF DRV8825 HIGH CURRENT STEPPER MOTOR DRIVER MODULE: 2.2A current handling capability Small footprint

The DRV8825 is a micro-stepping driver for controlling bipolar stepper motors which have a built-in translator for easy operation. Thus, we can control the stepper motor with just 2 pins from our controller. The DIR pin will control the rotation direction and the STEP pin will control the steps.

$1449 Get Fast, Free Shipping with Amazon Prime FREE Returns FREE delivery Wednesday, May 24 on orders shipped by Amazon over $25 Or fastest delivery Tuesday, May 23. Order within 20 hrs 36 mins Select delivery location In Stock Qty: 1 Buy Now Payment Secure transaction Ships from Amazon Sold by HiLetgo Returns

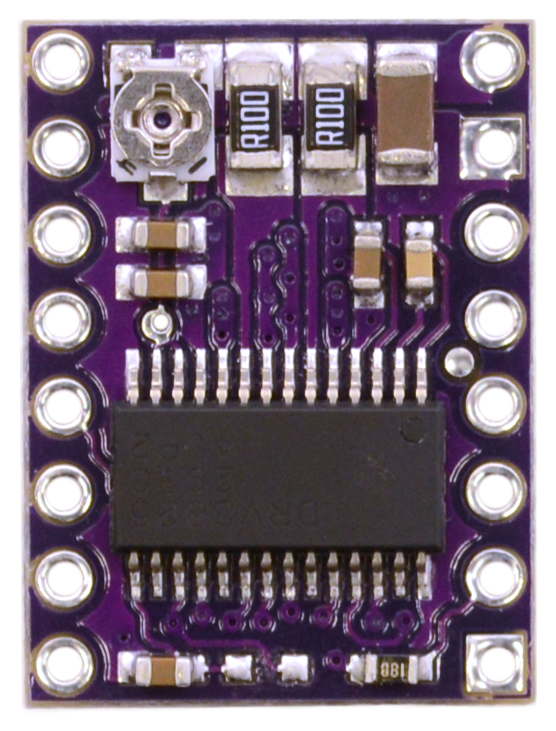

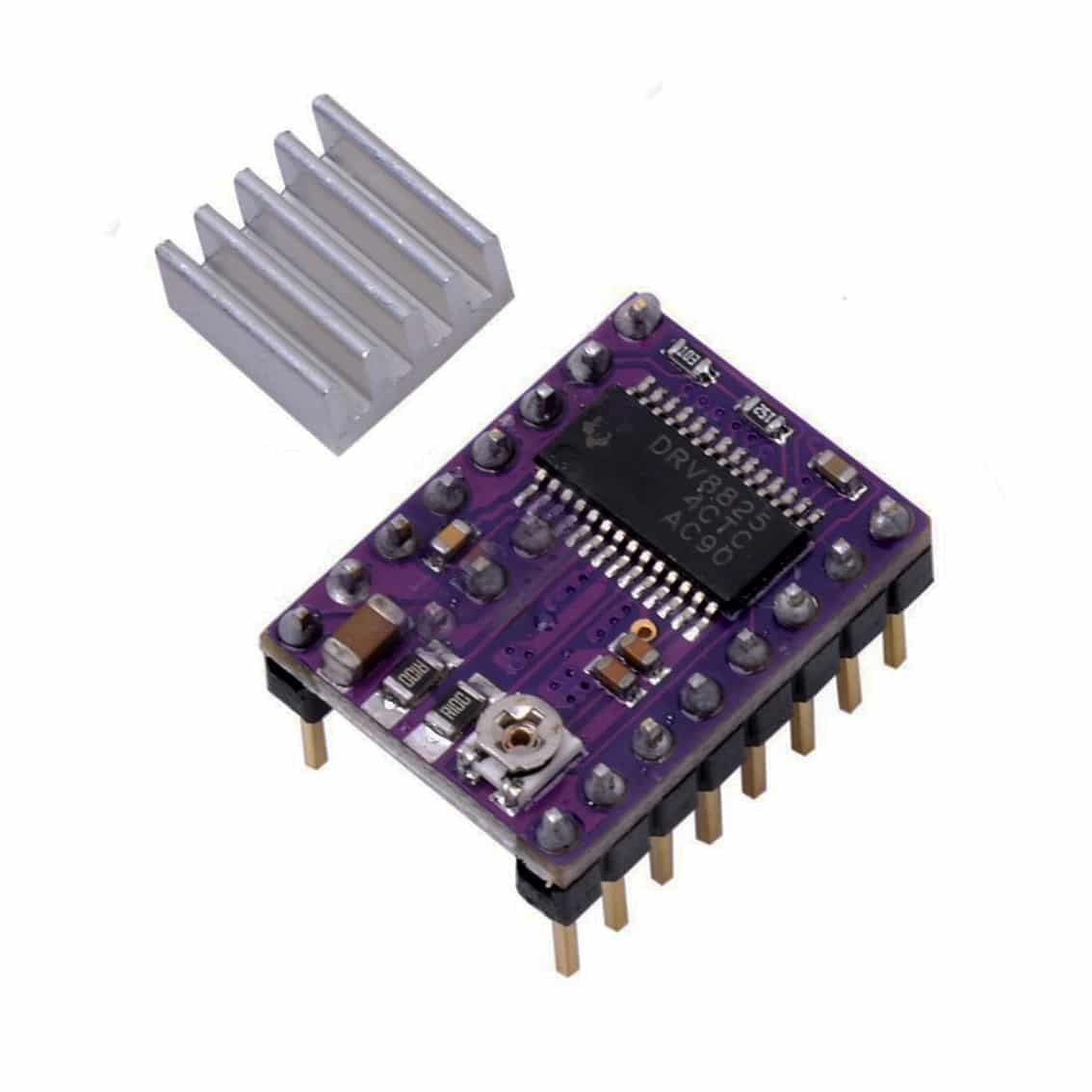

The DRV8825 stepper motor driver carrier is a breakout board for TI's DRV8825 microstepping bipolar stepper motor driver. The DRV8825 features adjustable current limiting, overcurrent and overtemperature protection, and six microstep resolutions (down to 1/32-step).

Product Introduction The DRV8825 stepper motor driver carrier board TI DRV8825 micro-bipolar stepper motor driver is a breakthrough. The module has a pinout and interface with our A4988 stepper motor driver carrier carrier is almost the same, so it can be used as a higher performance drop-down menu in which these boards are replaced in many applications.

Max. Operating Voltage: 45 V Min. Operating Voltage: 8.2 V Max. Current Per Phase: 2.5 A PCB Size: 15 mm x 20 mm Features Six step resolution: Full step, ½ step, ¼ step, 1/8, 1/16 and 1/32 step Adjustable output current via potentiometer Automatic current decay mode detection Over temperature shutdown circuit Under-voltage lock out

The DRV8825 provides an integrated motor driver 1• PWM Microstepping Stepper Motor Driver solution for printers, scanners, and other automated - Built-In Microstepping Indexer equipment applications.

This DRV8825 driver module which is used to control a stepper motor in a relatively simple manner. Using only two pins of the ESP8266 and DRV8825 driver module, we can control the speed of the rotation as well as the direction of rotation of a stepper motor.

Amazon.com: KINGPRINT DRV8825 Stepper Motor Driver Module with Heat Sink for 3D Printer Rrerap Ramps 1.4 A4988 (Pack of 5pcs) : Industrial & Scientific Industrial & Scientific › Additive Manufacturing Products › 3D Printer Parts & Accessories › 3D Printer Interface & Driver Modules

The DRV8825 evaluation module consists of a 2.5A, dual-H-bridge motor driver with on chip indexer (step/dir control interface) supporting up to 32 micro steps and a small number external components that can be used to drive a single bipolar stepper motor. The on-board MSP430 MCU + software/GUI provides signaling and control. With the DRV8825EVM, designers can quickly and easily evaluate the.

The DRV8825 Motor Driver Module is a driver with two H-bridge drives and a microstepping indexer. The driver has a maximum output capacity of 45 V and ± 2.5 A. It can operate bipolar stepper motors in full, 1/2, 1/4, 1/8, 1/16 and 1/32-step modes. This driver module is generally used in Robotics, ATMs and Gaming Machines.

This DRV8825 driver module which is used to control a stepper motor in a relatively simple manner. Using only two pins of the ESP32 and DRV8825 driver module, we can control the speed of the rotation as well as the direction of rotation of a stepper motor.

UPC: 618996739004. DVR8825 Stepper Motor Driver Module 5 Pcs. The DRV8825 stepper motor driver carrier is a breakout board for DRV8825 micro stepping bipolar stepper motor driver. The module has a pin out and interface that are nearly identical to those of our A4988 stepper motor driver board, so it can be used as a higher-performance drop-in.
